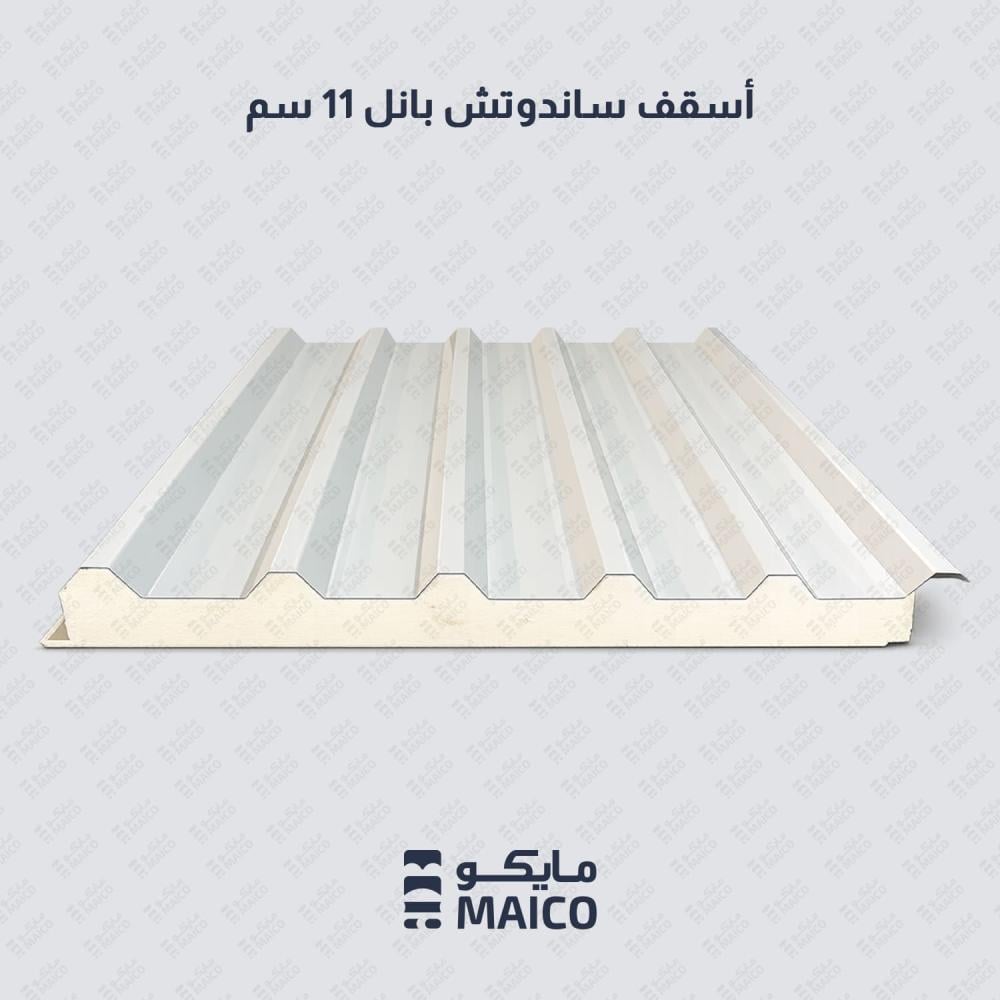

11 cm Sandwich Panel Roof

11 cm sandwich panel roof systems are among the most reliable engineered solutions for roofing applications in industrial, commercial, and residential buildings. They offer an excellent balance between durability and thermal performance.

At MAICO, these panels are manufactured with a high-quality polyurethane (PU) insulation core of 75 mm, combined with a 38 mm corrugated steel profile (rib height). This structure provides both superior insulation and enhanced structural strength.

The design of 11 cm roof sandwich panels is specifically developed to withstand the harsh climate conditions of Saudi Arabia, particularly in Jeddah, where high temperatures and humidity are common. This makes them an ideal choice for projects that require long-term performance and reliability.

With our extensive experience in the Saudi market, MAICO delivers products you can trust, ensuring consistent quality and dependable performance across a wide range of applications.

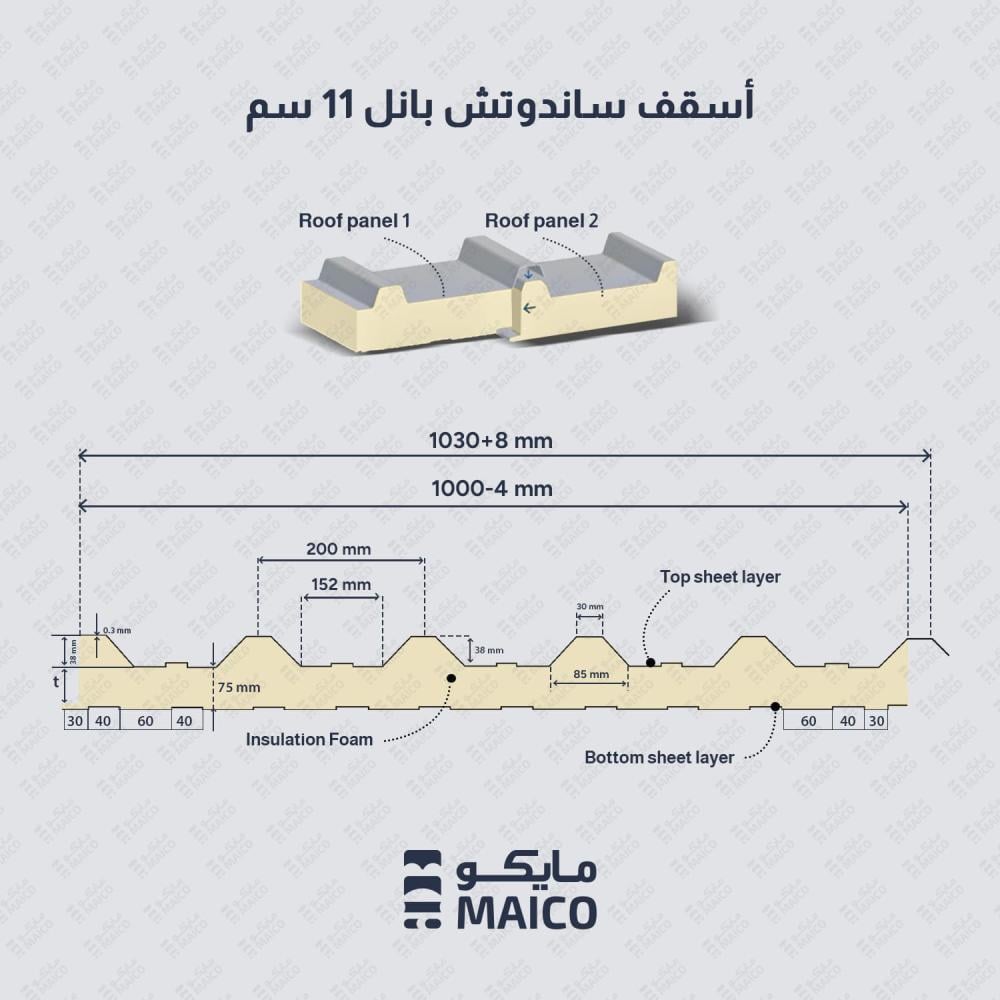

Dimensions of 11 cm Sandwich Panel Roof Sheets

We provide roof sandwich panels with a total thickness of (75 + 38), commercially known as 11 cm, engineered to deliver a perfect balance between high thermal insulation and structural strength.

Below are the detailed specifications of our 11 cm sandwich panels:

• Insulation Core Thickness (PU): 75 mm
• Top Steel Sheet Thickness: 0.30 – 0.40 – 0.50 mm (as required)
• Bottom Steel Sheet Thickness: 0.30 – 0.40 – 0.50 mm (as required)
• Rib (Corrugation) Height: 38 mm
• Effective Panel Width: 1000 mm
• Length: Custom-made up to 15 meters
• Number of Ribs: 6
• Distance Between Ribs (Center to Center): 200 mm
• Base Width of Each Rib: 85 mm

Note:

Although the rib height is 38 mm, the panel is commercially referred to as 11 cm, while the actual total thickness is 75 + 38 = 11.3 cm.

Why Choose 11 cm Sandwich Panel Roofs from MAICO?

There are several reasons why MAICO is your ideal choice for sandwich panel roofing solutions:

• MAICO is a licensed company (Commercial Registration No. 4030495136)
• All products are carefully selected and engineered by industry experts to meet Saudi climate conditions
• Excellent thermal insulation and moisture resistance, ideal for large-scale projects such as warehouses and factories
• High durability against harsh weather conditions
• Lightweight panels with fast and easy installation
• Full support with installation methods and required accessories

In the Western Region and across Saudi Arabia, we lead in supplying sandwich panels in all sizes

Technical Specifications of 11 cm Sandwich Panel Roof

Here are the detailed technical specifications:

• Total Thickness: 11 cm
• Insulation Thickness: 75 mm
• Steel Thickness: 0.30 – 0.50 mm
• Panel Width: 1000 mm
• Panel Length: Up to 15 meters (customized)
• Insulation Material: Polyurethane (PU)
• Density: 35 – 40 kg/m³
• Thermal Conductivity: 0.022 W/m·K
• Fire Resistance: B2 (upon request)
• Water Absorption: Very low
• Closed Cell Content: 92%
• Service Life: Up to 30+ years

Steel Thickness & Color Options

To meet different project requirements, MAICO offers multiple options:

Steel Thickness Options

• 0.30 mm
• 0.40 mm
• 0.50 mm

Available Colors

• RAL 9002 – RAL 1014
• ✔ Available for all order quantities
• RAL 5012 – RAL 3002
• ✔ Available for orders above 1000 m² only

Applications of 11 cm Sandwich Panel Roof

Thanks to its high performance, this panel is widely used in:

• Warehouses and storage facilities
• Factories and industrial buildings
• Hangars
• Commercial buildings
• Residential extensions
• Cold rooms

Price of 11 cm Sandwich Panel Roof

MAICO is an authorized supplier of sandwich panels, offering competitive and transparent pricing based on quantity and specifications.

Price: 97.46 per m² (VAT included)

Delivery not included

Special pricing is available for large quantities exceeding 5000 m².

Frequently Asked Questions

Is 11 cm sandwich panel suitable for Jeddah?

Yes, it provides excellent thermal insulation, making it ideal for high الحرارة and humidity.

Does the price include delivery?

No, the price does not include delivery.

Can the panel length be customized?

Yes, panels can be manufactured up to 15 meters and cut as you want

Get the best sandwich panel price in Jeddah from MAICO, backed by experience and reliable quality.
